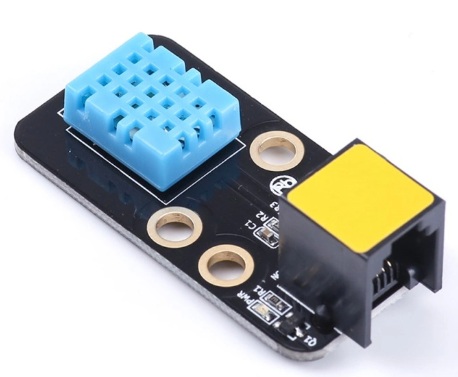

Me Temperature and Humidity Sensor V1
SGD $14.30
Availability: 5
Me Temperature and Humidity Sensor is a sensor that contains a calibrated digital signal output. It adopts specific digital module collecting technology and temperature-humidity sensing technology to ensure high reliability and excellent long-term stability. This module can measure the temperature from 0? to 50?. Users can use it to build a cost-effective temperature and humidity monitoring system. Its yellow ID means that it has a single-digital port and needs to be connected to the port with yellow ID on Makeblock Orion.
Features:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â
-Small size and low power consumption;
-Strong anti-interference ability;
-Total calibrated digital output;
-White area of module is the reference area to contact metal beams;
-Support Arduino IDE programming and provide runtime library to simplify programming;
-Adopt RJ25 port for easy connection;
-Provide pins to support most Arduino Baseboards.
Power supply voltage: 5V DC;
Control mode: Single bus digital signal;
Power supply current: max 2.5mA;
Temperature range: 0-50? ± 2C
Humidity range: 20-90% RH ± 5% RH;
Precision: 1% RH, 1C;
Module dimension: 51 x 24 x 18mm (L x W x H);
Part List:
1 x Me Temperature and Humidity Sensor
