JoyC (W/O M5StickC)

JoyC (W/O M5StickC)

Description

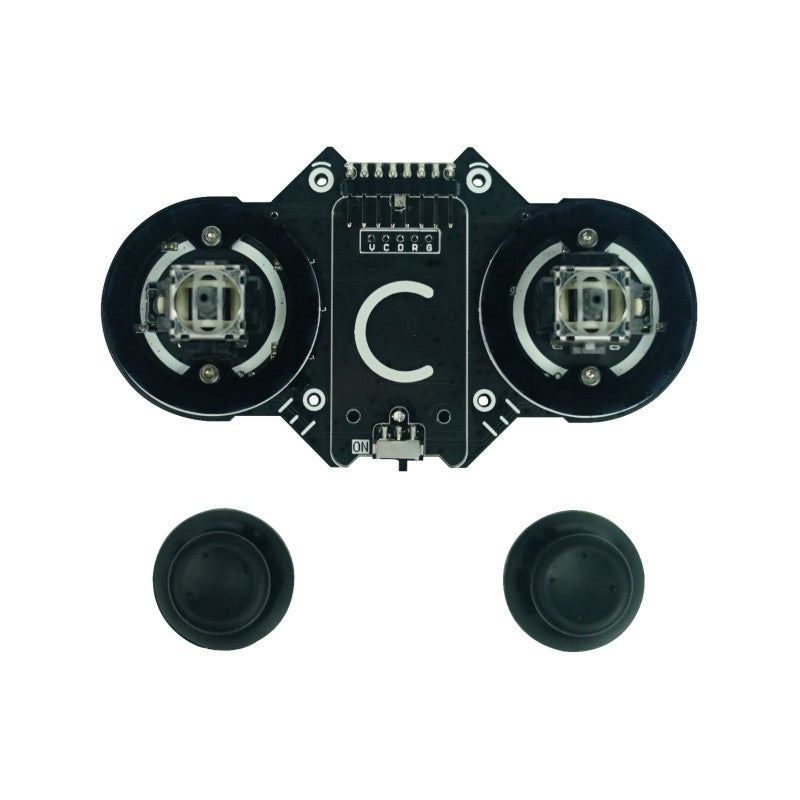

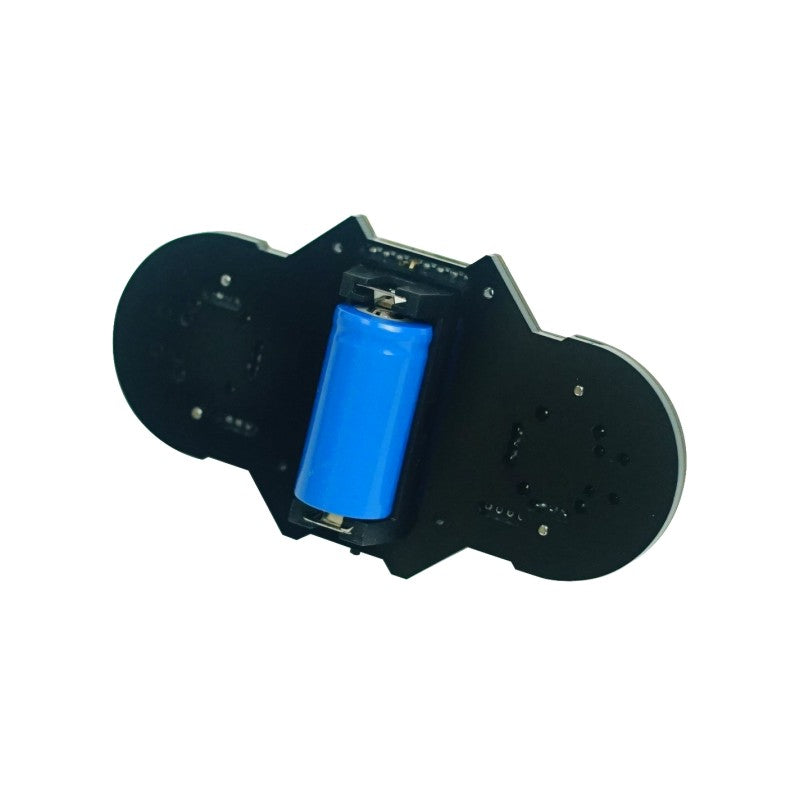

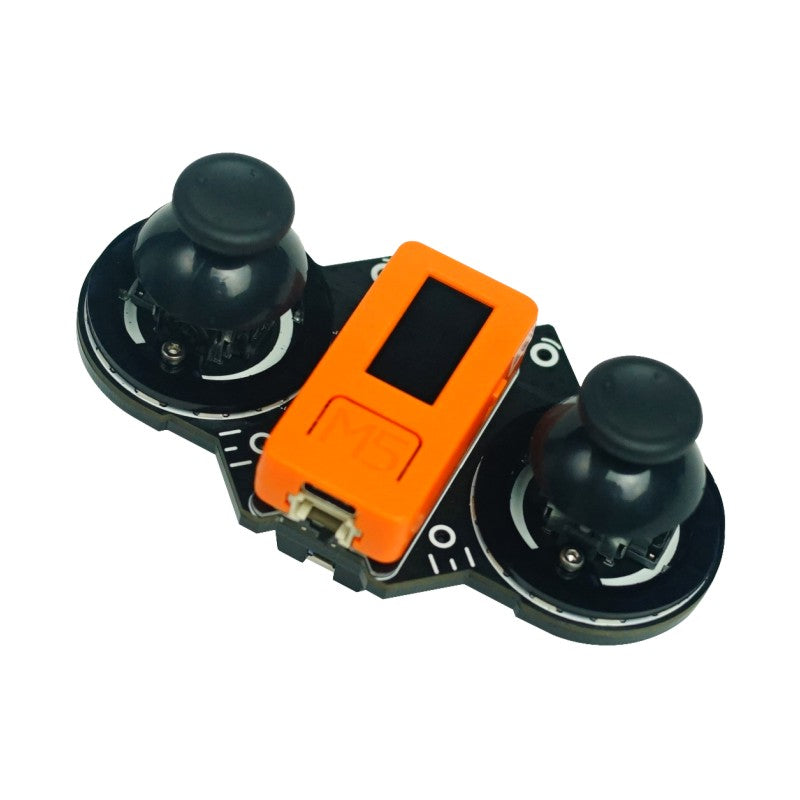

JoyC is a rocker module designed for the M5StickC.It supports two-hand operation. Embedded STM32F030F4 main control chip, using I2C communication protocol and host M5StickC for data transmission. The range of the joystick is 0~200, there are 12 RGB LEDs under the left and right joysticks, and the bottom of the joystick is equipped with a 16340 battery base for continuous battery life.

Product Features

• STM32F030F4 inside
• communication protocol: I2C (address: 0x38)
• support omni-directional movement/button press
• Dimension：200mm x 55mm x 50mm
• Weight：81g(include 750mAh Battery)

Package Includes

• 1x JoyC
• 1x 16340 Battery

Applications

• Game Handle
• Wireless Joystick Device
