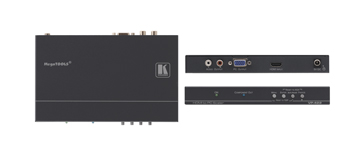

HDMI to Computer Graphics Video & HDTV ProScal Digital Scaler
SKU: AE-KR-VP-422
MANUFACTURER: Kramer
SGD $950.00
Out of stock
| HDMI to Computer Graphics Video & HDTV ProScal Digital Scaler

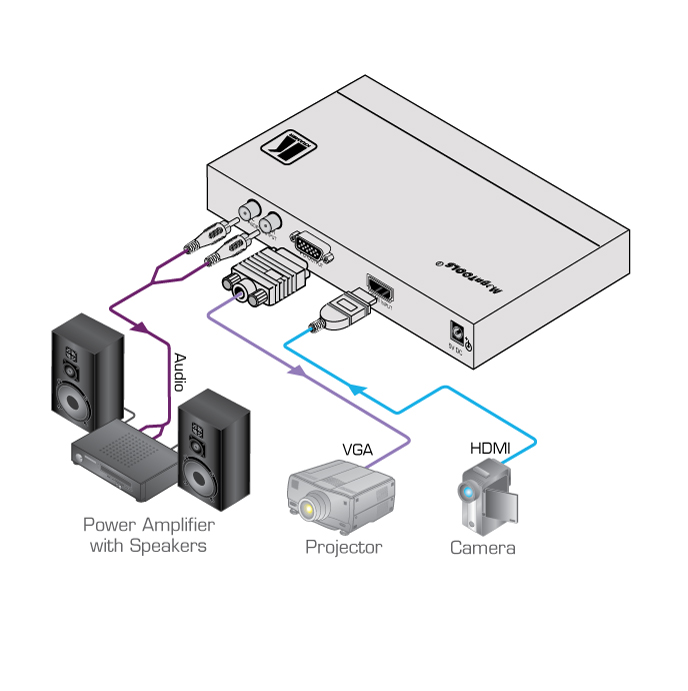

The VP−422 is a high−performance digital scaler for non−HDCP encrypted HDMI signals. It up− or down−scales the input to a selectable computer graphics video or HDTV output signal on a 15−pin HD connector and de−embeds the audio to an unbalanced stereo signal.
Applications:
|
|||
| Features | |
|
+ Max. Resolution – WUXGA & 1080p
+ HDTV Compatible
+ Built-in ProcAmp – Color, sharpness, brightness, contrast, etc
+ Controls – Front panel with On−Screen Display (OSD)
+ Compact MegaTOOLS™ – 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B universal rack adapter
|
|
| Specifications | |
|
+ INPUT: 1 HDMI connector
+ OUTPUTS: 1 computer graphics (RGBHV)/HDTV (YPbPr) on a 15−pin HD connector (selectable); 1 unbalanced stereo audio on RCA connectors
+ OUTPUT RESOLUTIONS: PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA, 1280×800, WXGA+, SXGA+, 1600×900, 1080pRGB HDTV: 480p, 576p, 720p @50/60Hz, 1080p @50/60Hz, 1080i @50/60Hz.
+ OUTPUT REFRESH RATE: 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions
+ PROCESSING DELAY: 3 frames
+ CONTROLS: Front panel buttons, ON and component output LEDs
+ POWER CONSUMPTION: 5V DC, 1.1A
|
|
| Dimensions | |
|
+ DIMENSIONS: 18.8cm x 11.4cm x 2.5cm (7.4” x 4.5” x 0.98”) W, D, H.
+ WEIGHT: 0.66kg (1.45lbs) appro
|
|
