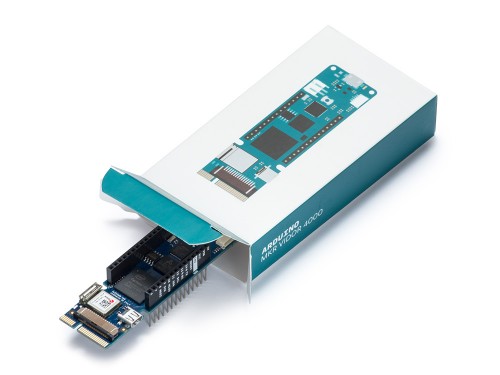

ARDUINO MKR VIDOR 4000
SGD $160.50
Availability: 7

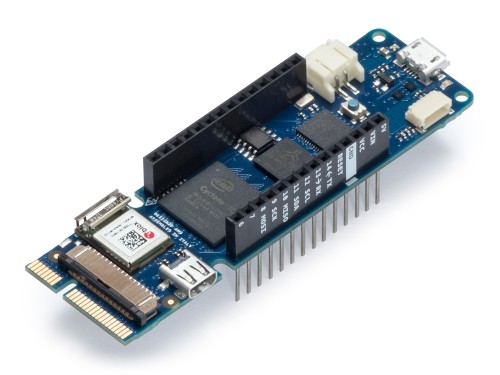

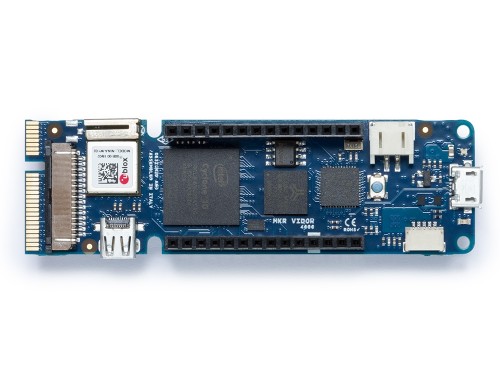

With the MKR VIDOR 4000 you can configure it the way you want; you can essentially create your own controller board. It comes loaded with hardware and potential: an 8 MB SRAM; a 2 MB QSPI Flash chip — 1 MB allocated for user applications; a Micro HDMI connector; an MIPI camera connector; and Wifi & BLE powered by U-BLOX NINA W10 Series. It also includes the classic MKR interface on which all pins are driven both by SAMD21 and FPGA. Plus, it has a Mini PCI Express connector with up to 25 user programmable pins.
The FPGA contains 16K Logic Elements, 504 KB of embedded RAM, and 56 18×18 bit HW multipliers for high-speed DSP. Each pin can toggle at over 150 MHz and can be configured for functions such as UARTs, (Q)SPI, high resolution/high frequency PWM, quadrature encoder, I2C, I2S, Sigma Delta DAC, etc.
The on-board FPGA can be also used for high-speed DSP operations for audio and video processing. This board also features a Microchip SAMD21. Communication between FPGA and the SAMD21 is seamless.
| FPGA | Intel Cyclone 10CL016 |
| Mini PCI Express port with programmable pins | |
| Camera connector | MIPI camera connector |
| Circuit Operating Voltage | 3.3V |
| Digital I/O Pins | 22 headers + 25 Mini PCI Express |
| PWM Pins | All Pins |
| UART | Up to 7 (depends on FPGA configuration) |
| SPI | Up to 7Â (depends on FPGA configuration) |
| I2C | Up to 7Â (depends on FPGA configuration) |
| Analog Input Pins | n/a |
| Analog Output Pins | n/a |
| External Interrupts | n/a |
| DC Current per I/O Pin | 4 or 8 mA |
| Flash Memory | 2 MB |
| SDRAM | 8 MB |
| EEPROM | n/a |
| Clock Speed | 48 MHz – up to 200 MHz |
| Video Output | Micro HDMI |
| Microcontroller | Microchip ATSAMD21 (Arm Cortex-M0+ processor) |
| Wi-Fi | U-blox Nina-W102 |
| (VIN) | 5V |
| Supported Battery(*) | Li-Po Single Cell, 3.7V, 700mAh Minimum |
| Circuit Operating Voltage | 3.3V |
| Digital I/O Pins | 22 |
| PWM Pins | 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 – or 18 -, A4 -or 19) |
| UART | 1 |
| SPI | 1 |
| I2C | 1 |
| Analog Input Pins | 7 (ADC 8/10/12 bit) |
| Analog Output Pins | 1 (DAC 10 bit) |
| External Interrupts | 8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 – or 17) |
| Flash Memory | 256 KB |
| SRAM | 32 KB |
| EEPROM | No |
| Clock Speed | 32.768 kHz (RTC), 48 MHz |
| LED_BUILTIN | 6 |
| Full-Speed USB Device and Embedded Host | Included |
| LED_BUILTIN | 6 |
| Length | 83 mm |
| Width | 25 mm |
| Weight | 32 g |
